Sandwich Panels
PIR roof panel
Minimum roof pitch 3° (5.2 %) without transverse joint and penetration. PIR roof panel with PIR/polyurethane core can be combined with mineral wool core.

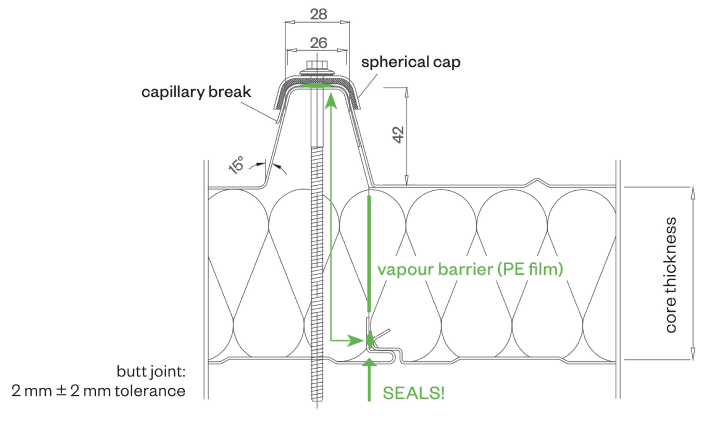

DETAIL/joint geometry

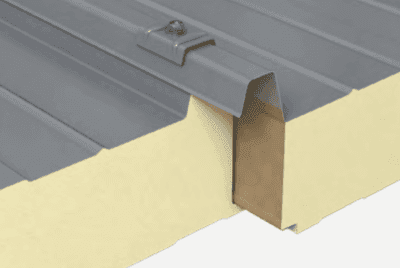

symbol image - DP

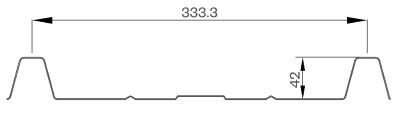

TRAPEZOID PROFILE exterior
| Core Thickness | 30 | 40 | 50 | 60 | 80 | 100 | 120 | 140 | 160 |
|---|---|---|---|---|---|---|---|---|---|
| PIR+ nonhalogen U-value W/m²K - EN 14509 including joint section | 0.661 | 0.504 | 0.407 | 0.341 | 0.257 | 0.207 | 0.173 | 0.149 | 0.130 |
| Weight kg/m² | 9.80 | 10.22 | 10.63 | 11.05 | 11.89 | 12.72 | 13.55 | 14.39 | 15.22 |
MANUFACTURING TOLERANCES
in line with EN 14509
SOUND INSULATION
26 dB at 60/80 mm, 27 dB from 100 mm core thickness
MANUFACTURING LENGTHS
max. 21.5 m (extra-long transport from 13.6 m)
TEMPERATURE RESISTANCE
80 °C
SPAN WIDTH TABLES
according SandStat. calculation
FIRE BEHAVIOR
in line with EN 13501-1, Euroclass Bs1d0
DP-F roof panel
Minimum roof pitch 3° (5.2 %) without transverse joint and penetration. BRUCHA panel DP-F with mineral wool core can be combined with BRUCHA panel DP with polyurethane core.

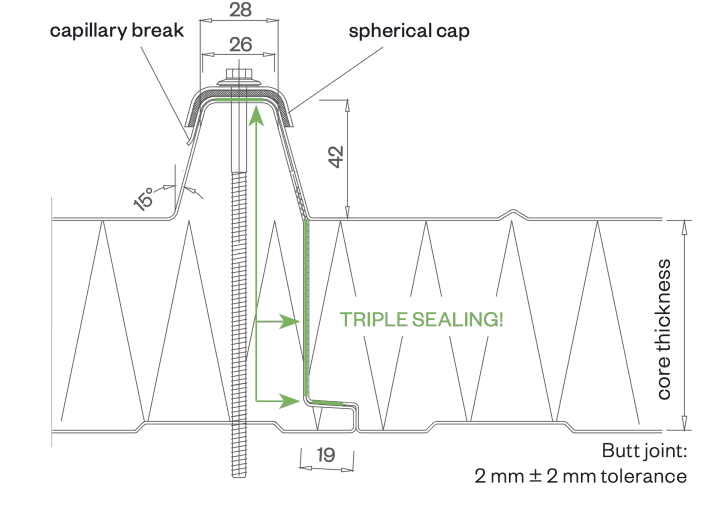

TRAPEZOID PROFILE exterior - close-up

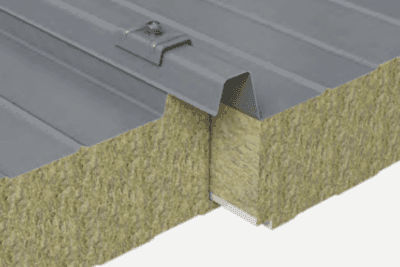

symbol image - DP-F
TRAPEZOID PROFILE exterior - close-up
| Core Thickness | 60 | 80 | 100 | 120 | 140 | 150 | 160 | 180 | 200 |
|---|---|---|---|---|---|---|---|---|---|
| U-value W/m²K - EN 14509 including joint section | 0.659 | 0.504 | 0.409 | 0.344 | 0.297 | 0.278 | 0.261 | 0.233 | 0.210 |
| Weight kg/m² | 16.80 | 19.31 | 21.81 | 24.31 | 26.81 | 28.07 | 29.32 | 31.82 | 34.32 |
| Fire resistance | REI 30 | REI 90 | REI 120 | REI 120 | REI 120 | REI 120 | REI 120 | REI 120 | REI 120 |
*Certificates must be checked for the usage case in question (horizontal/vertical/span width etc.)
MANUFACTURING TOLERANCES
in line with EN 14509
SOUND INSULATION
32 dB (frequency dependent)
MANUFACTURING LENGTHS
max. 15.6 m (extra-long transport from 13.6 m) ATTENTION! Danger of kinking due to heavy weight in the case of long panels!
SPAN WIDTH TABLES
according SandStat. calculation
FIRE BEHAVIOR
in line with EN 13501-1, Euroclass A2s1d0, non-combustible
