Sandwich Panels
Freezer panel

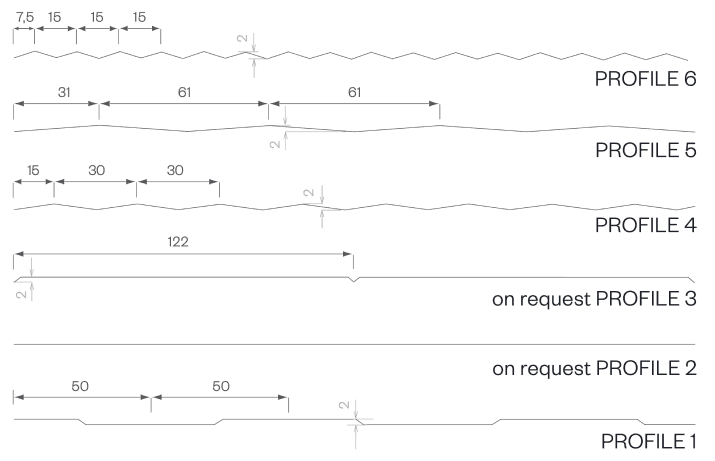

exterior PROFILE options - close-up

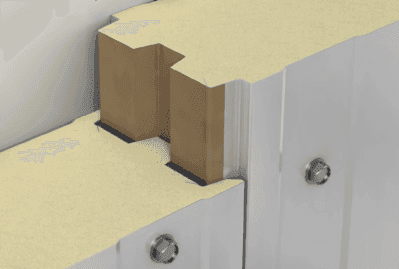

symbol image - WP profile 1

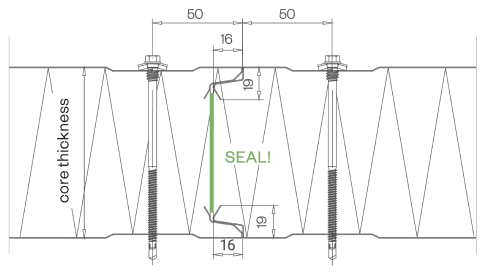

DETAIL/joint geometry up to 80 mm core thickness

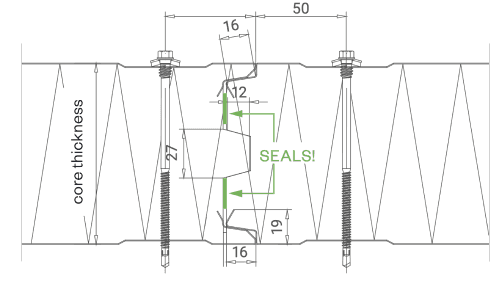

DETAIL/joint geometry from 100 mm core thickness
| Core thickness | 120 | 140 | 150 | 160 | 170 | 180 | 200 | 220 | 250 |
|---|---|---|---|---|---|---|---|---|---|
| PIR+ nonhalogen U-value W/m²K - EN 14509 including joint section | 0.175 | 0.150 | 0.140 | 0.131 | 0.124 | 0.117 | 0.105 | 0.095 | 0.084 |
| Weight kg/m² | 13.65 | 14.45 | 14.85 | 15.25 | 15.65 | 16.05 | 16.85 | 17.65 | 18.75 |
MANUFACTURING TOLERANCES
in line with EN 14509
SOUND INSULATION
26 dB at 60/80 mm, 27 dB from 100 mm core thickness
MANUFACTURING LENGTHS
max. 18.4 m (extra-long transport from 13.6 m)
TEMPERATURE RESISTANCE
80 °C
SPAN WIDTH TABLES
according SandStat. calculation
FIRE BEHAVIOR
in line with EN 13501-1, Euroclass Bs1d0
