Sandwich Panels
Facade panel

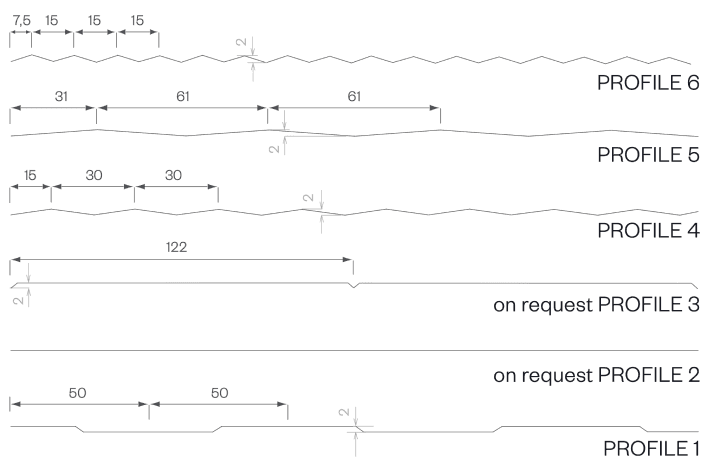

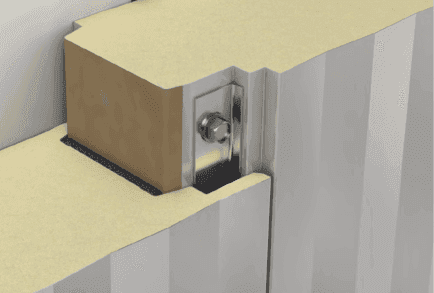

exterior PROFILE options - close-up
symbol image - FP profile 5

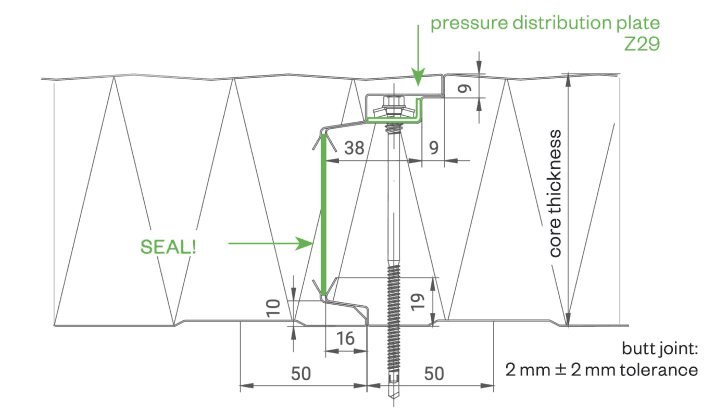

DELTA/joint geometry
| Core Thickness | 60 | 80 | 100 | 120 | 140 | 150 | 160 |
|---|---|---|---|---|---|---|---|
| PIR+ nonhalogen U-value W/m²K - EN 14509 including joint section | 0.404 | 0.275 | 0.216 | 0.179 | 0.153 | 0.142 | 0.133 |
| Weight kg/m² | 11.25 | 12.05 | 12.85 | 13.65 | 14.45 | 14.85 | 15.25 |
MANUFACTURING TOLERANCES
in line with EN 14509
SOUND INSULATION
26 dB at 60/80 mm, 27 dB from 100 mm core thickness
MANUFACTURING LENGTHS
max. 16.0 m (extra-long transport from 13.6 m)
TEMPERATURE RESISTANCE
80 °C
SPAN WIDTH TABLES
according SandStat. calculation
FIRE BEHAVIOR
in line with EN 13501-1, Euroclass Bs1d0
FP-F facade panel

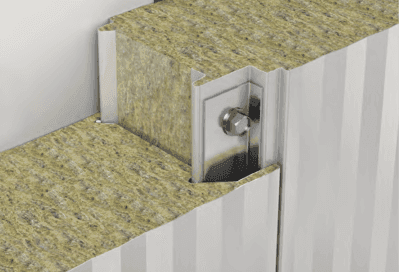

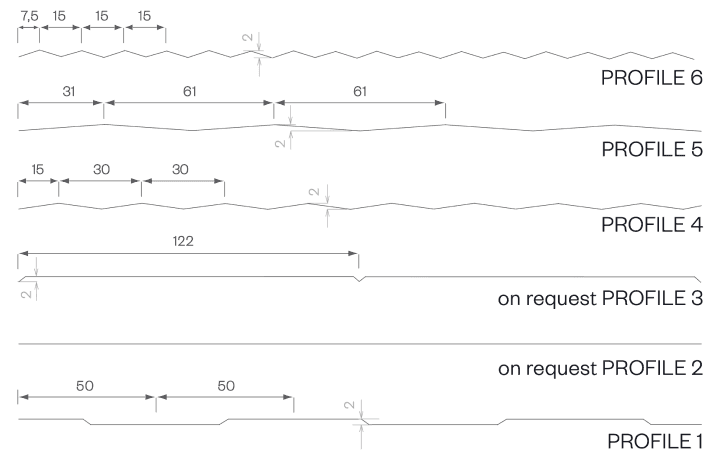

exterior PROFILE options - close-up
symbol image - FP-F profile 5

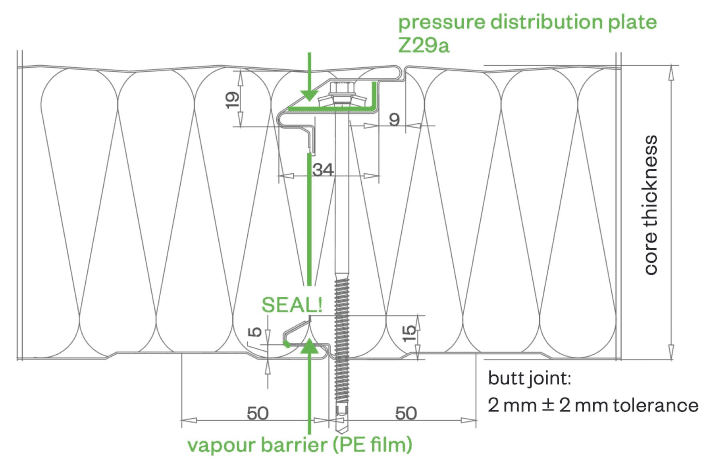

DETAIL/joint geometry
| Core thickness | 60 | 80 | 100 | 120 | 140 | 150 | 160 | 180 | 200 | 240 |
|---|---|---|---|---|---|---|---|---|---|---|
| U-value W/m²K - EN 14509 including joint section | 0.781 | 0.540 | 0.427 | 0.355 | 0.305 | 0.285 | 0.267 | 0.237 | 0.214 | 0.178 |
| Weight kg/m² | 16.38 | 18.79 | 21.18 | 23.58 | 25.98 | 27.18 | 28.38 | 30.78 | 33.18 | 37.98 |
| Fire resistance | NPD | EI 90 | EI 90 | EI 120 | EI 120 | EI 120 | EI 120 | EI 120 | EI 120 | EI 120 |
*Certificates must be checked for the usage case in question (horizontal/vertical/span width etc.)
MANUFACTURING TOLERANCES
in line with EN 14509
SOUND INSULATION
32 dB (frequency dependent)
MANUFACTURING LENGTHS
max. 15.6 m (extra-long transport from 13.6 m) ATTENTION! Danger of kinking due to heavy weight in the case of long panels!
SPAN WIDTH TABLES
according SandStat. calculation
FIRE BEHAVIOR
in line with EN 13501-1, Euroclass A2s1d0, non-combustible
